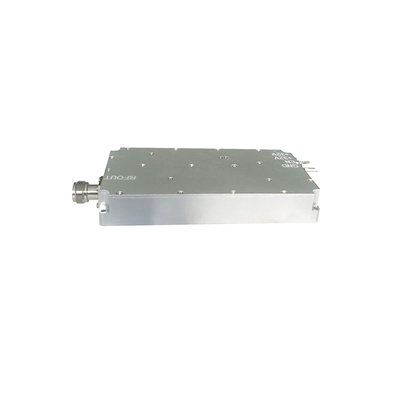

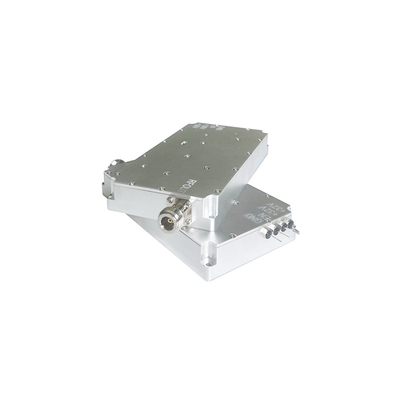

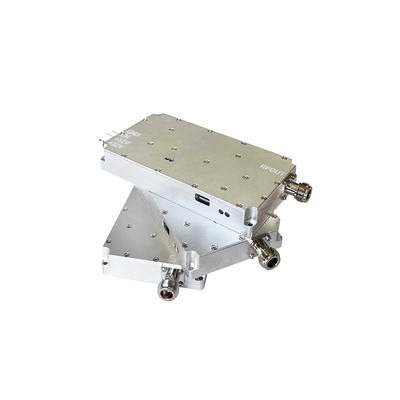

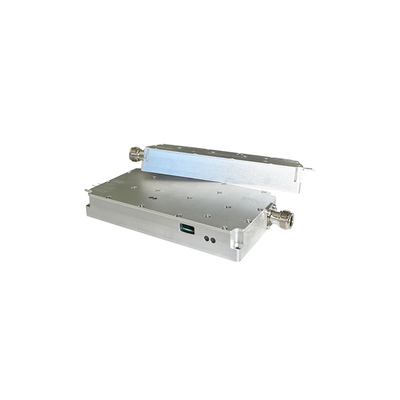

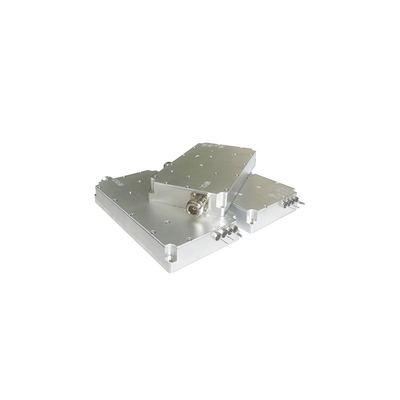

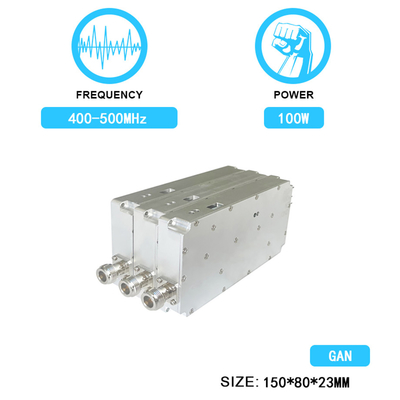

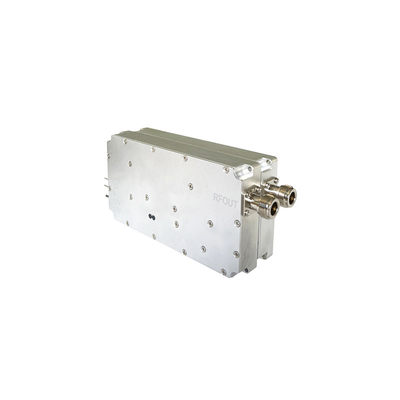

100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector

100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector
100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector

Large Image :  100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector Get Best Price

Product Details:
Place of Origin: China
Brand Name: OEM/ODM
Certification: CE
Model Number: JYT-M400-100
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiate
Packaging Details: Neutral Package
Delivery Time: 1-3 working days after payment received
Payment Terms: T/T
Contact Now
Detailed Product Description



Product Parameters



100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 0



Main Components :

1, Adjustable Bandwidth  2, Adjustable Bandwidth  3, Adjustable Driver Tube Voltage

4, Tube Voltage  5, Adjustable GAN Voltage  6, GAN Voltage



1.RF Data

Item Spec. Remarks
Frequency Range(MHz) 400-500 Bandwidth Range±10MHz
Working Voltage 28V 24-30V
Analog sweeping speed 250KHz
Output Power (Max) ≥47dBm 100W
Gain (Max) 47±1 dB
Ripple in Band ≤ 3 dB Peak
Bandwidth adjustment Yes By screw
Center adjustment Yes By screw
Enable control Yes 24-28V
Output VSWR ≤1.5
Working current@+28V dc ≤9A



High Low Temperature test

 Working Temperature -20~＋65℃ Working properly
Gain Stability ±1 dB at -20℃~+55℃
Power stability ±1 dB at -20℃~+55℃
Power supply Port Positive and negative lines 24-28V; GND
Center adjustment SMA-Female
LED indicator light Power ON/OFF
Dimension 150*80*23 mm
Screw Size 4-Ø3.20 mm
Weight 590g



2.Size

100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 1



Detailed Photos



100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 2,



100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 3

100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 4

100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 5

Spectrum data


100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 6
100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 7
100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 8
100W 400-500MHz Anti Drone System Fpv Module Anti-Drone Module for Fpv Detector With GAN and Isolation Protector 9
