High Power Draw Bar Box 8 Channels Drone Signal Jammer 240W up to 1500 meters blocks Drone/UAV Signals
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Pelican Case | Jamming Type:\: | WIFI, 5.2GWIFI, 5.8GWIFI, GPSL1, GpsL2:l5, GPSL3-L4, 915, 433 |
|---|---|---|---|
| Total Power Output: | 240W | Jamming Range: | 1500 Meters@-75dbm |

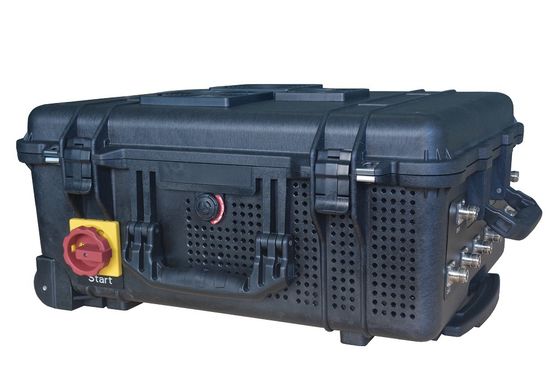

High Power Draw Bar Box 8 Channels Drone Signal Jammer 240W up to 1500 meters blocks Drone/UAV Signals.
High Power Draw Bar Box 8 Channels Drone Signal Jammer with 240W high power and up tp 1500 meters jamming distance, This is the latest professional signal jammer from all over the world.
Built-in high capacity battery and portable backpack design makes the jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,hostage negotiations,border control,etc...
Specifications:
Cover interface standards:
JYT-DP2503
| Channel | Output Port | Frequency | Average Out-Putting Power |
| 1 | WIFI | 2400-2500MHz | 30W |
| 2 | 5.2GWIFI | 5100-5300MHz | 30W |
| 3 | 5.8GWIFI | 5725-5850MHz | 30W |
| 4 | GPSL1 | 1570-1580MHz | 30W |
| 5 | GpsL2:l5 | 1170-1280MHz | 30W |
| 6 | GPSL3-L4 | 1370-1390MHz | 30W |
| 7 | 915 | 860-930MHz | 30W |
| 8 | 433 | 433MHz | 30W |
Features
*Wide coverage targets, covering all UAV remote control signals.
*Draw-bar box designed for portability and easy moving;
*Built-in rechargeable battery can be used for 120 minutes after being fully charged;
*Manual switch ;
*Military standard case, which is anti-throw, pressure-resistant and highly durable;
*AC110-220V/Built-in battery supply (DC24V)/Vehicle power supply(DC24V);
*Built-in efficient cooling fan and cooling fin ensures the product to work stably in a long service life;
Band Parameters
Main Parts
Component Dimensions
| Name | L | W | H | Remarks |
| Host | 556 | 455 | 266 | Protrusions excluded |
| Antenna |
375 Φ29 |
|||
Other Parameters
| Total Weight | 33.86kg |
| Ambient Temperature | -10℃~+50℃ |
| Relative Humidity | ≤80% |
| Power Consumption | ≤480W |
| Power Input | AC100~240V,DC24V |
| Battery | 24V,33AH,Built-in standby battery can used for 90~120 minutes |
| Antenna Parameters | Omni antennas,gain:4~5dBi |
| Switch Control | Manually |
| Equipment Chassis | Metallic Paint |
Product Applications
Built-in high capacity battery and portable backpack design make this jammer applicable to meeting halls,infantry,military security force,SWAT team,bomb squad,anti-terrorism units,anti-drag units,anti-riot force,the EOD team,checkpoints,
hostage negotiations,border control,etc...
Product details
Warranty: one year from delivery date
For more details,please do not hesitate to send us an enquiry.
