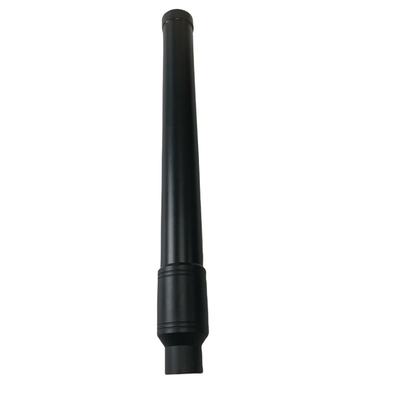

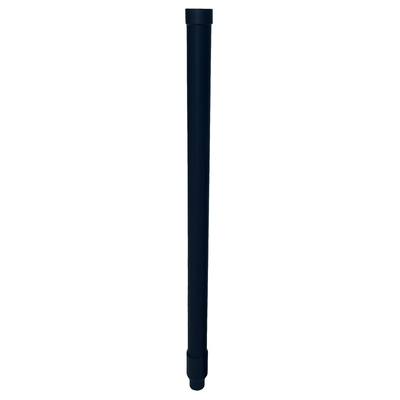

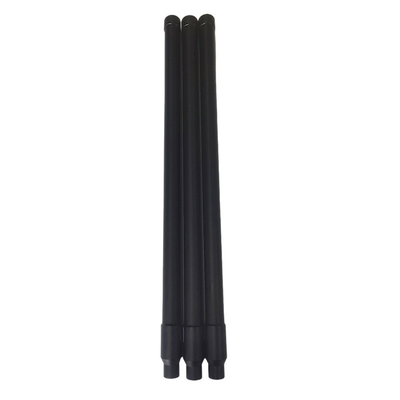

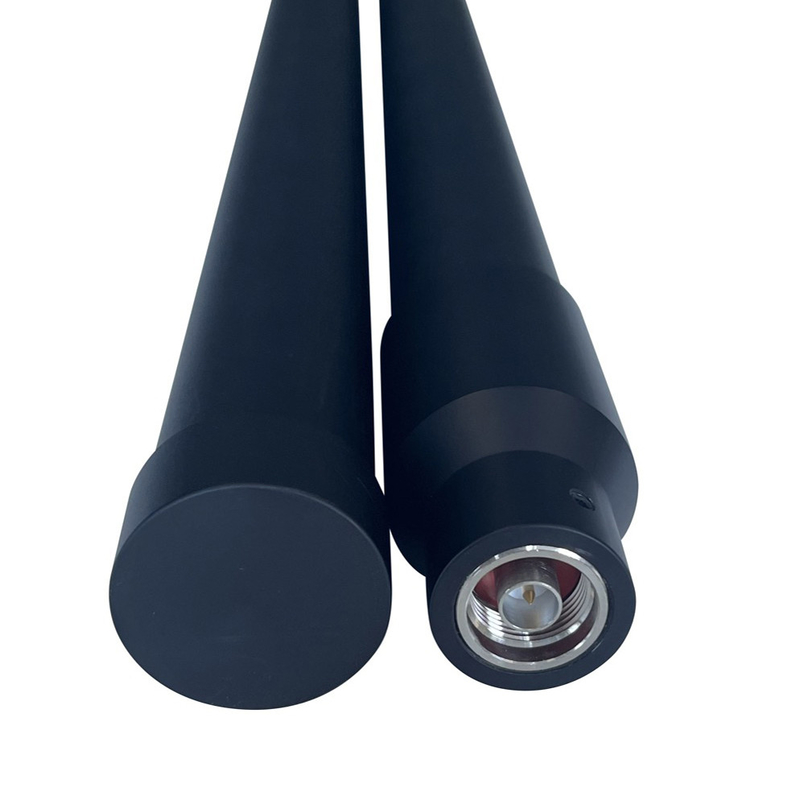

600mm Omnidirectional fiberglass jammer antenna 850-950Mhz，700-850Mhz，950-1100Mhz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Electrical specifications:
| 1 | Frequency range(MHz) | 850-950；700-850；950-1100 for your option |
| 2 | Gain(dBi) | 5 |
| 3 | Vertical beam width | 16 |
| 4 | Impedance (Ω) | 50 |
| 5 | VSWR | ≤2.0 |
| 6 | Polarization | Vertical |
| 7 | Maximum input power (W) | 100 |
| 8 | Lightning protection | DC Ground |
Mechanical specifications:

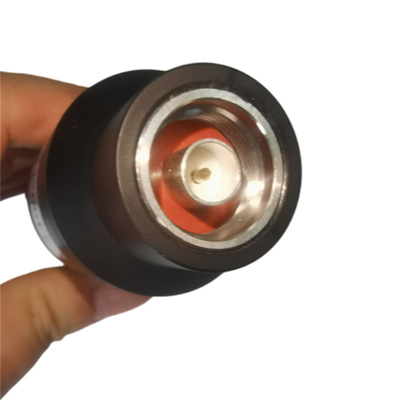

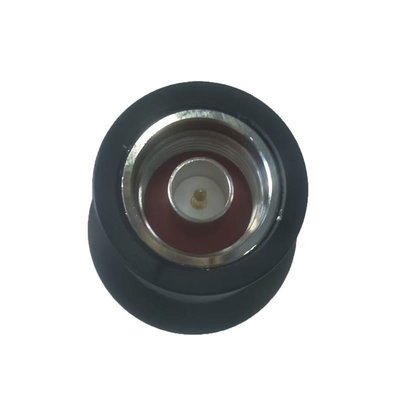

| 1 | Connector | N-female |
| 2 | Dimension (mm) | Ф32*600 |
| 3 | Antenna weight | 0.35kg |
| 4 | Material | Fiberglass |
| 5 | Rated wind velocity (km/h) | 60 |
| 6 | Mounting way | Pole-holding |
| 7 | Ambient temperature (℃) | -40℃~+60 |
Warranty: one year from delivery date
OEM and ODM orders are welcome
For more details,please do not hesitate to send us an enquiry.
