JinYaTong Technology(china) Co., Ltd
Wireless Signal Devices Professional Manufacture
Wireless Signal Devices Professional Manufacture
 |
| Place of Origin: | China |
| Brand Name: | JYT |
| Certification: | CE |
| Model Number: | 1880 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Neutral Package |
| Delivery Time: | Within 3 days after payment received |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000pcs/month |
| Battery: | Built-in Battery | Working Time: | Up To 2.5hours |
|---|---|---|---|
| Shielding Radius: | 10-25 Meters | Color: | Silver |

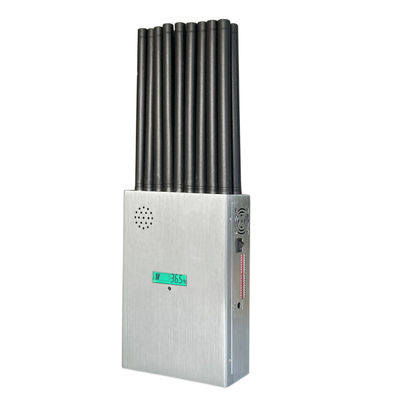

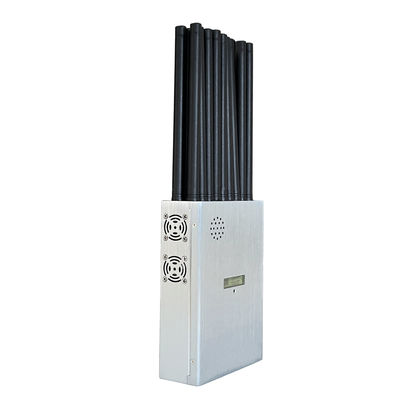

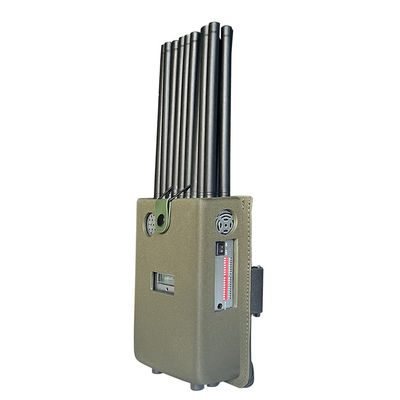

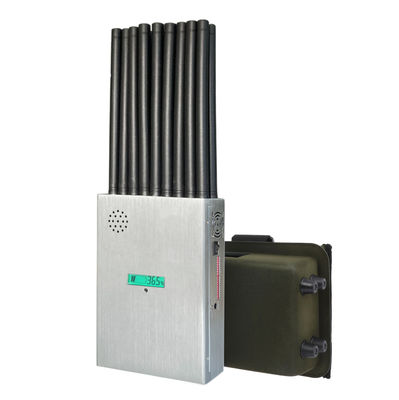

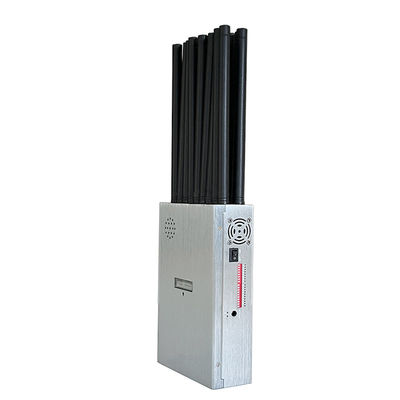

This 18 antennas multifunctional hand-held portable cell phone jammer is independently designed and produced by JinYaTong Technology , there are 2 models '1880A' and '1880B' for your option .
1: JYT-1880A shielding mobile phone 2G, 3G, 4G, 5G and GPSL1, GPSL2-L5, GPSL3-L4 , 2.4GWIFI, 5.2GWIFI, 5.8GWIFI, UHF, RF signals,total 18 chancels.
2: JYT-1880B shielding mobile phone 2G, 3G, 4G, 5G and GPSL1, GPSL2-L5, GPSL3-L4 , 2.4GWIFI, 5.2GWIFI, 5.8GWIFI, UHF, RF, Lojack signals,total 18channels.
This cell phone jammer meets your blocking needs for the most common affected frequency types.And the handheld design makes it easy to carry.
Build-in 3 cooling fans and Bigger hot sink ensure the device to work safe and continuously
Specifications:
Cover interface standards:
JYT-1880A
Band 1: CDMA: 850 to 894MHz
Band 2: GSM: 925-960MHz
Band 3: DCS&: PCS: 1,805 -1990MHz
Band 4: 3G: 2,110-2,170MHz
Band 5: Wi-Fi: 2,400 -2,500MHz
Band 6: GPSL1: 1570-1580MHz
Band 7: 4GLTE: 738 -821MHz
Band 8: 4GWIMAX: 2620- 2690MHz
Band 9: RF315: 315MHz
Band 10: RF433: 433MHz
Band 11: RF868: 868MHz
Band 12: GPSL2-L5: 1170-1280MHz
Band 13: 5.2GWIFI: 5100-5600MHz
Band 14: 5.8GWIFI: 5600 -5900MHz
Band 15: 5G1: 3300-3600MHz
Band 16: 5G2: 3600-3800MHz
Band 17: UHF: 400-470MHz
Band 18: GPS L3-L4: 1370-1390 MHz
JYT-1880B
Band 1: CDMA&GSM: 850 to 960MHz
Band 2: DCS&:PCS: 1,805 to 1990MHz
Band 3: 3G: 2,110 to 2,170MHz
Band 4: Wi-Fi: 2,400 to 2,500MHz
Band 5: GPSL1: 1570 to 1580MHz
Band 6: 4G LTE: 738 to 821MHz
Band 7: 4GWIMAX: 2620 to 2690MHz
Band 8: 315: 315MHz
Band 9: 433: 433MHz
Band 10: 868: 868MHz
Band 11: GPSL2-L5: 1170 to 1230MHz
Band 12: 5.2GWIFI: 5100-5600MHz
Band 13: 5.8GWIFI: 5600 to 5900MHz
Band 14: 5G1: 3300-3600MHz
Band 15: 5G2: 3600-3800MHz
Band 16: Lojack: 165-174MHz
Band 17: UHF: 400-470MHz
Band 18: GPSL3-L4: 1370-1390MHz
We can also customize the frequencies according to different requirements,Please feel free to contact us anytime!
Parameters:
Output Power: 18W
Power Supply: AC100-240V to DC12V IN
Full set Weight: 2.25 KGS
Size: 195*128*58(not include Antennas)
Length of antenna : 166mm Gain:2.0dbi
Shielding Radius: 10-25meters at-70dBm (depends on the signal strength in the given area)
Battery: Built-in battery 7.4V/10000mAh
Working Time: More than 2 hours
Cooling System: High efficiency aluminum alloy radiator, Build-in 3x cooling fans
1.ODM and OEM orders are welcome.

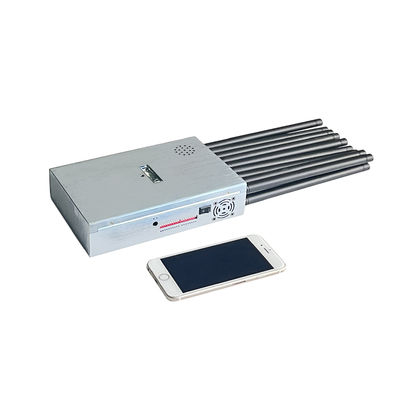

2.Small size design,easy to cary.
3.With DIP Switch,Support the adjust or turn off of any single band without influencing the other bands's operation.
4.The shileding distance up to 25m, Depends on the signal strength in a given area.

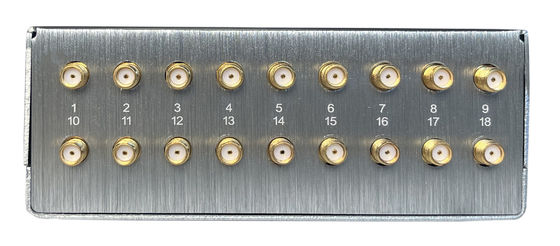

5.External Omni-directional antennas. all the TX frequency covered down link only.

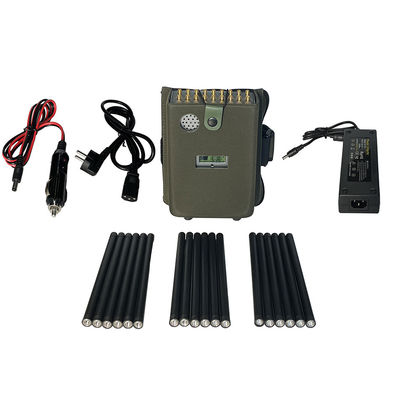

6.Equipped with a car charger, which can be used directly in the car, 12V DC/AC power supply is also available.
7.Built-in rechargeable 7.4v 10000Mah battery, Working time more than 2 hours.
8.Silkscreen OEM service can be offered.
9.The LED Power screen display can display Power Percentage, Current, Voltage, and Working Current data.
Application:
1.It can be applied at meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more;
2.For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Warranty: one year from delivery date.
For more details,please do not hesitate to send us an enquiry.
Contact Person: Mr. Peter
Tel: 86-75523123361
Fax: 86-755-23149611
18 antennas signal jammer blocking all 2G 3G 4G 5G WIIFI GPS RF LOJACK signals with remote control.
